Korean standard charging plug

YGP-179

Product Application：

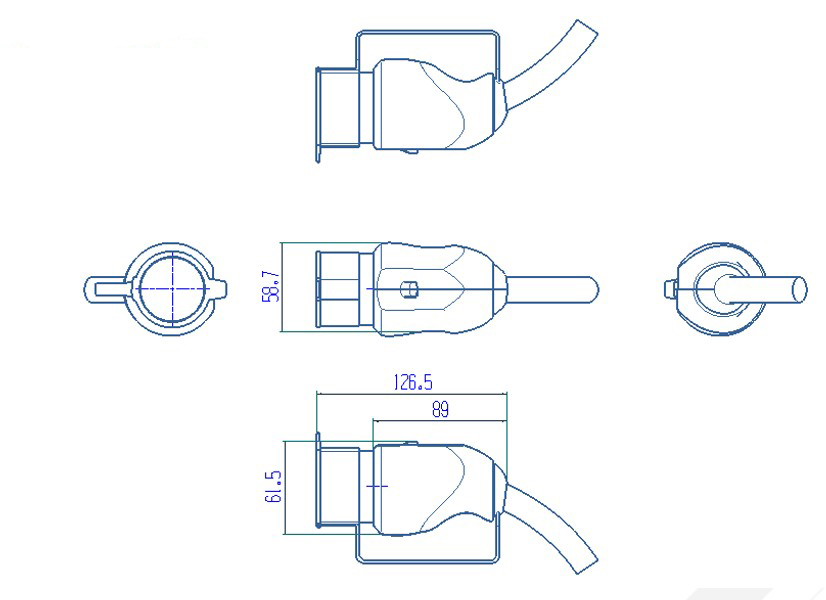

Detailed dimensions

Features

1.The size of the plug shall be compatible with the Korean standard plug,and the length of the charging gun shall be less than 90mm

2. Nice appearance，hand-held ergonomic design，easy plug

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

Electrical Performance

1. Rated current：32A

2. Operation voltage： 240V AC

3. Insulation resistance：＞100MΩ（DC1000V）

4. Terminal temperature rise：＜50K

5.Withstand Voltage：2000V AC/1min

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: PC/PBT 357U rice white

2. Terminal：Copper alloy,silver plated surface

3.Excellent protection performance, protection grade IP54(working condition)

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model	Rated current	Cable specification
YGP179	32A	36mm²+20.5mm² TUV/TPU
