Daily standard DC charging socket

DSIEC3a-G-EV-S

Product Application：

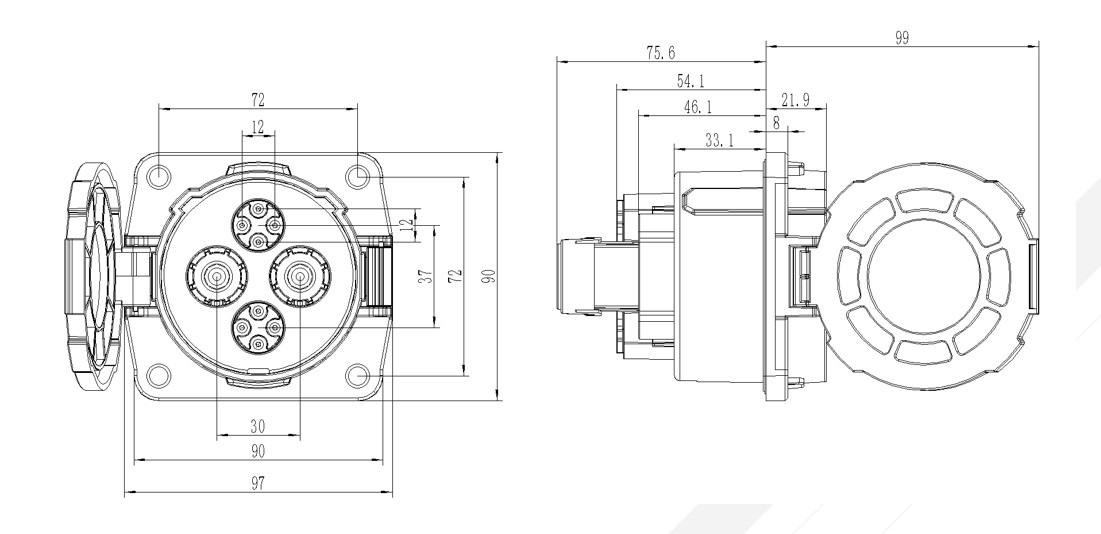

Detailed dimensions

Features

1.Comply with IEC 62196-3:2014 standard

2. Nice appearance，hand-held ergonomic design，easy plug

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

Electrical Performance

1. Rated current：125A/150A/200A

2. Operation voltage： 600V DC

3. Insulation resistance：＞100MΩ（DC1000V）

4. Terminal temperature rise：＜50K

5.Withstand Voltage：3000V AC/1min

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: aluminum alloy

2. Terminal：Copper alloy,silver plated surface

3.Inner core:thermoplastic

4.Excellent protection performance, protection grade IP54

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring
