Electromagnetic lock

DSIEC-ELM

Product Application：Prevent charging plug release accidentally

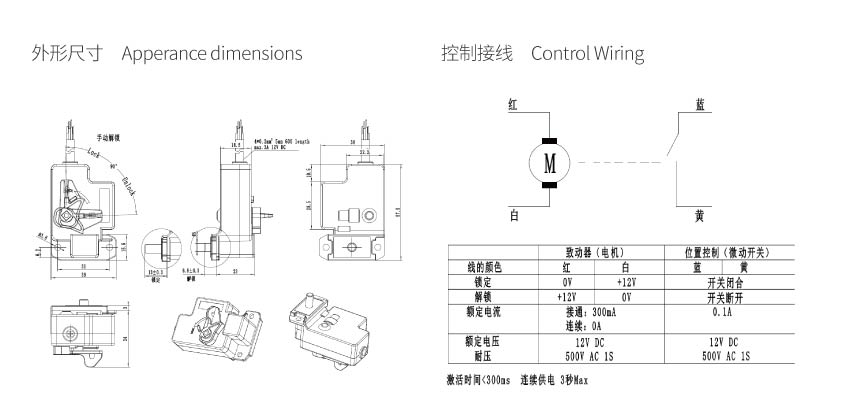

Detailed dimensions

Features

1. Instantaneous power supply mode,low energy loss

2. Small size,suitable for small space installation

3. Power failure or malfunction can be manual release

4. Non-detachable shell protection,protection grade IP54

Mechanical properties

1. Mechanical life : operating cycle ＞50000 times

Electrical Performance

1. Current：0.3A

2. Voltage：12V DC

3. Power：3.6W

4. Operating voltage range：12V±3V DC

5. Withstand voltage：500V AC 1S

6. Working cycle: On:Activate <300-500ms for 3 seconds MAX

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 HB

Environmental performance

1. Operating temperature:-30°C~+70°C

Model selection and the standard wiring

Model

Rated current

Cable specification

Cable length

Wire diameter

colour

DSIEC-ELM

12V 0.3A

4 X 0.2mm²

600mm

4mm

black
