Electromagnetic lock

DSIEC-ELC

Product Application：Prevent charging plug release accidentally

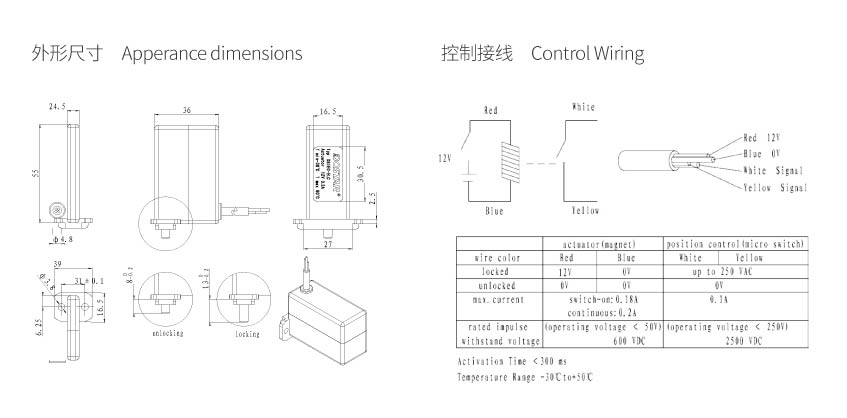

Detailed dimensions

Features

1. Low power long power supply mode,low heating temperature

2. Small size,suitable for small space installation

3. Power blackout unlocked automatically

4. Non-detachable shell protection,protection grade IP55

Mechanical properties

1. Mechanical life : operating cycle ＞20000 times

Electrical Performance

1. Current：0.2A

2. Voltage：12V DC

3. Power：2.4W

4. Operating voltage range：12V±3V DC

5. Withstand voltage：500V

6. Working cycle: On:1Sec OFF:10Sec

7. Insulation class: B CLASS

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 HB

Environmental performance

1. Operating temperature:-30°C~+50°C

Model selection and the standard wiring

Model

Rated current

Cable specification

DSIEC-ELC

12V 0.2A

4 X 0.2mm²
