Electromagnetic lock

V4Z-DSI-EL

Product Application：Prevent charging plug release accidentally

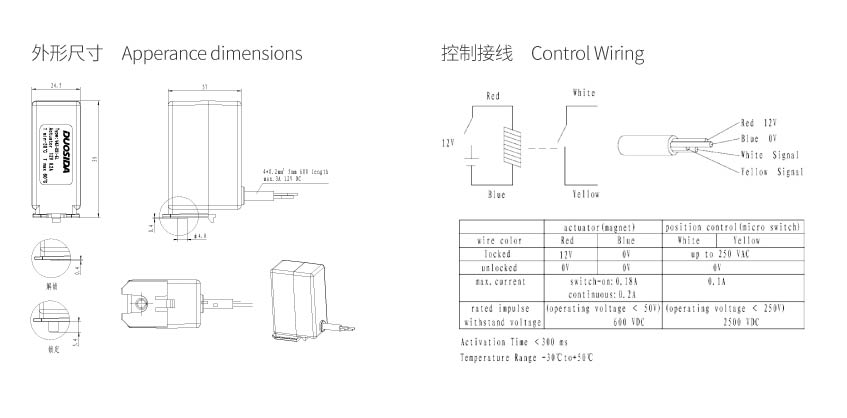

Detailed dimensions

Features

1. Instantaneous power supply mode,low energy loss

2. Small size,suitable for small space installation

3. Power failure or malfunction can be manual release

4. Non-detachable shell protection,protection grade IP55

Mechanical properties

1. Mechanical life : operating cycle ＞50000 times

Electrical Performance

1. Current：3A/1.5A

2. Voltage：12V /24V

3. Power：36W

4. Operating voltage range：12/24V DC

5. Withstand voltage：1000V

6. Working cycle:On: 5%ED activation ＜300-500 ms,continue 3 seconds max

7. Insulation class: E(class )

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 HB

Environmental performance

1. Operating temperature:-30°C~+70°C

Model selection and the standard wiring

Model

Rated current

Cable specification

V4Z-DSI-EL

12V 3A

24V 1.5A

4 X 0.2mm²
