COMBO 2

DSIEC3m-EV80S/150S/200S

Product Application：Electric vehicle connection

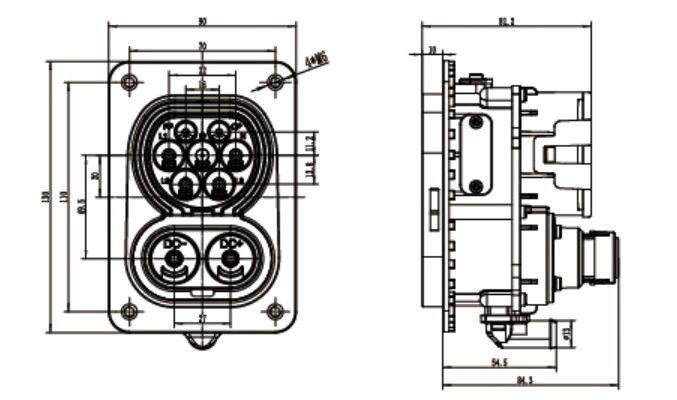

Detailed dimensions

Features

1. Charging plug meet 62196-3 IEC 2011 SHEET 3-Im standard

2. Concise appearance, support back installation

3. Contact with drainage structure, improve safety performance

4. Safety pins insulated head design to prevent accidental direct contact with staff

5. Protection class IP55(working state)

6. DC Max charging power:127.5kW

7. AC Max charging power:41.5kW

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

Electrical Performance

1. DC input: 80A/150A/200A 1000V DC

2. AC input: 16A 32A 63A 240/415V AC

3. Insulation resistance：＞100MΩ（DC1000V）

4. Terminal temperature rise：＜50K

5. Withstand Voltage：3000VAC/1min

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Pin：Copper alloy,silver +thermoplastic on the top

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring
