COMBO 2

DSIEC3m-EV80P/150P/200P

Product Application：Electric vehicle connection

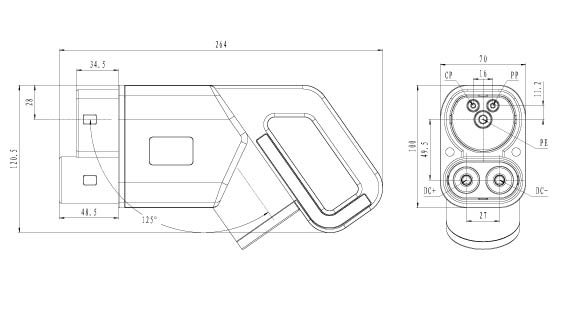

Detailed dimensions

Features

1. Charging plug meet 62196-3 IEC 2011 SHEET 3-Im standard

2. Housing massive structure promote protection performance

3. Product entire insertion and extraction force < 100N

4. Protection class IP55

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

2. Impat of external force: can afford 1m drop and 2t vehicle run over pressure

Electrical Performance

1. Rated current：80A/150A/200A

2. Operation voltage： 1000V DC

3. Insulation resistance：＞100MΩ（DC1000V）

4. Terminal temperature rise：＜50K

5. Withstand Voltage：3000VAC/1min

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Conntact bush：Copper alloy,silver plating

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring
