Liquid cooled DC charging plug

V5-DSD-EV400LP/500LP/600LP

Check the size map

Product Application：

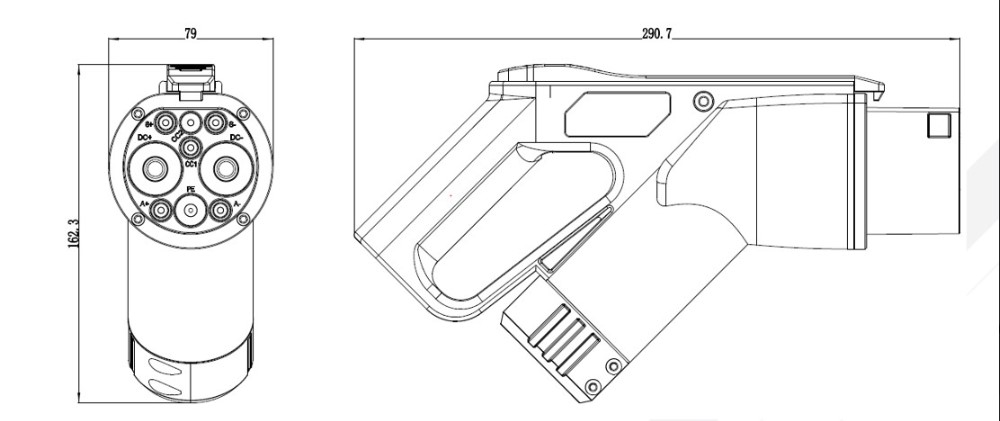

Detailed dimensions

Features

1. Vehicle Charging connector meets the requirements of GB/T 20234.3-2015

2. Insertion and withdrawal force < 140N

3. Degree of protection: IP55（mated)

4. With insulating coolant, there is no risk of insulation fault or short circuit after leakage. Immersed cooling structure, the cooling liquid directly contacts the cable conductor and terminal, and flows into the contact area of DC pins. The cooling performance is excellent, and the charging cable assembly is lighter.

Mechanical properties

1. Insertion and withdrawal cycles：＞10000 times (No-load)

2. Mechanical strength : Withstand 1m drop test and 5000N wheel driveover pressure

Electrical Performance

1. Rated current：600A Max (continuous)

2. Operation voltage： 1000V DC

3. Insulation resistance:＞1000MΩ（DC 1000V）Normally environment

4. Terminal temperature rise：＜50K

5. Withstand Voltage：3500VAC/1min

6.Contact Resistance:0.5MΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Conntact bush：Copper alloy,silver plating

3.Cable jacket material: TPU

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model	Rated current	Cable specigication
V5-DSD-EV400LP1	400A	2 X 16mm² + 1 X 6mm² + 2 X 2.5mm² + 8 X 0.75mm² + （2 X 0.75mm²）P2 OD：25mm
V5-DSD-EV400LP2	400A	2 X 25mm² + 1 X 6mm² + 2 X 2.5mm² + 8 X 0.75mm² + （2 X 0.75mm²）P2 OD：28.3mm
V5-DSD-EV500LP	500A	2 X 25mm² + 1 X 6mm² + 2 X 2.5mm² + 8 X 0.75mm² + （2 X 0.75mm²）P2 + 1 X Tube OD：29.5mm
V5-DSD-EV600LP	600A	2 X 35mm² （cooled） + 1 X 25mm² + 2 X 4mm² + 2 X （4 X 0.75mm²）+ （2 X 0.75mm²）P2 + 2 X Tube OD：34mm
