CHAOJI CHARGING PLUG

DSC-EV32P/200P/400LP/500LP

Product Application：

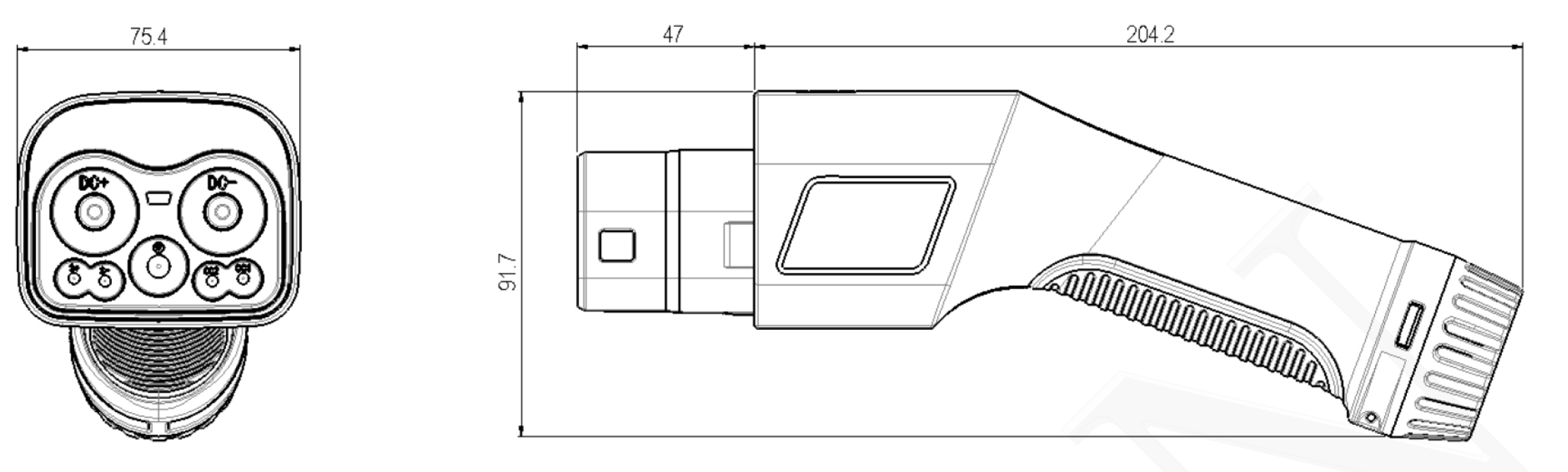

Detailed dimensions

Features

1. Nice appearance,hand-held ergonomic design,easy plug

2. The pin head adopts a safe insulation design to prevent direct contact outside the hand

Mechanical properties

1.Mechanical life:no-load plug in/pull out＞10000 times

2. Plugging force during coupling ：70N＜F＜120N

Electrical Performance

1. Rated working current: 32A/200A (non liquid cooling) &400a~500a (liquid cooling)

2. Operation voltage:1500V

3. Insulation resistance: at room temperature ＞ 100MΩ (DC 1000V)

4. Terminal temperature rise:＜50K

5.Withstand Voltage:3000V AC/1min

Applied Materials

1. Case Material:Thermoplastic,flame retardant grade UL94 V-0

2. Pin: copper alloy, silver plated surface + top thermoplastic

3.Excellent protection performance,protection grade: internal IP67(working state) / coupling IP55

Environmental performance

1. Operating temperature：-30℃～+50℃

Model selection and the standard wiring
