Electromagnetic lock

V3-DSIEC-ELM

Product Application：

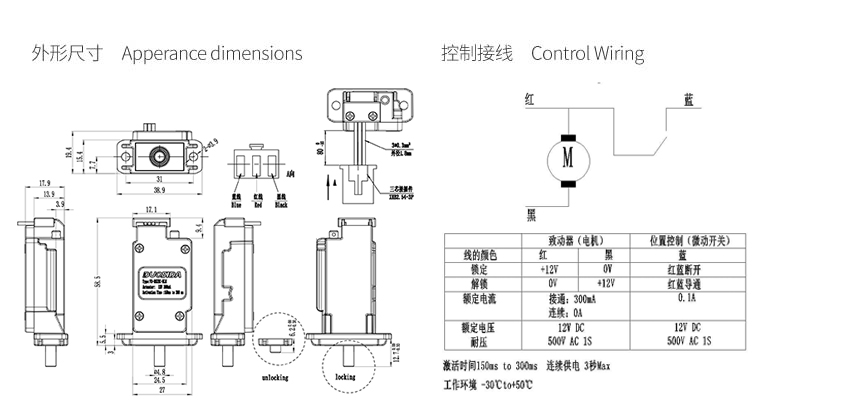

Detailed dimensions

Features

1. Instantaneous power supply mode,low energy loss

2. Small size,suitable for small space installation

3. Power failure or malfunction can be manual release

4. Waterproof grade: IP67 (at the lock bar), IP44 overall

5. Installation method: vertical installation

Mechanical properties

1. Mechanical life : operating cycle ＞30000 times

Electrical Performance

1. Current：DC Max 300mA

2. Voltage：12V±1.5 DC

3. Power：3.6W

4.Withstand voltage：600V AC 1S

5. Working cycle: On:Activate <300-500 ms

6. Insulation class: Class B

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 HB

Environmental performance

1. Operating temperature:-30°C~+70°C

Recommended use

1.European standard pile end internal installation;

2.European standard structure vehicles with higher protection level in socket area

Model selection and the standard wiring

Model

Rated current

Cable specification

Cable length

Wire diameter

colour

V3-DSIEC-ELM

12V 0.3A

3 X 0.3mm²

80mm

4mm

black
