Integrated charging mode 2
2080-IPSE-10/16/32-XC-ES
Product Application：

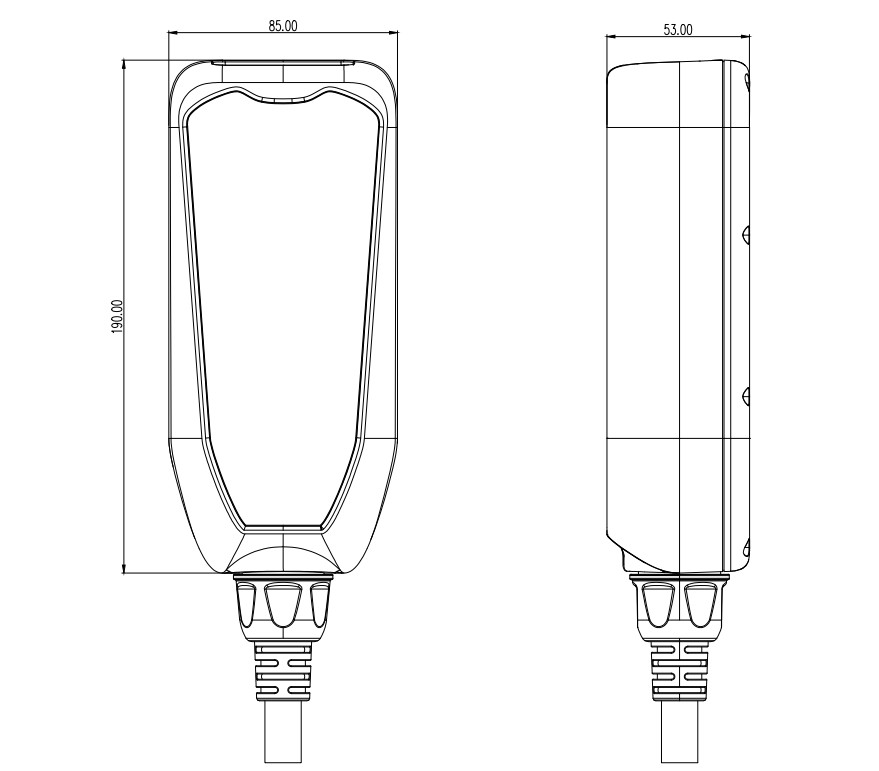

Detailed dimensions



Features
1. Charging plug meet IEC 62196-2:2016 standard
Mechanical properties
1. Mechanical life : no-load plug in/pull out＞10000 times
Electrical Performance
1. Rated current：10/16/32A
2.Rated voltage：230V AC
3. Insulation resistance：＞100MΩ（DC1000V）
4. Withstand Voltage：2000VAC/1min
5.Contact Resistance： 0.5mΩ Max
6.Altitude：2000m
7.Working range of leakage：Type+6mA
8.Leakage current mode：A+6mA
9.Short circuit limiting current：1.5KA
Applied Materials
1. Terminal: copper alloy, silver plated
2.Inner core: thermoplastic
3. Excellent protection performance,PSE IP67
Environmental performance
1. Operating temperature: -30°C~+50°C





Model selection and the standard wiring



Model Rated current Cable specification
2080-IPSE-10-XC-ES 10A 3 X 6mm²+1 X 0.75mm²
2080-IPSE-16-XC-ES 16A 3 X 6mm²+1 X 0.75mm²
2080-IPSE-32-XC-ES 32A 3 X 6mm²+1 X 0.75mm²
