Charging mode 2

2080-PSE-32-XC-ES

Product Application：Electric vehicle connection

Detailed dimensions

Features

1. Charging plug meet IEC 62196-2：2016 standard

2. Power plug meet 2099.1-2008 regulations and requirements,can choose with temperature protection device

3. Control box meet IEC 61851

4. Excellent protection performance,plug IP54(working condition),PSE IP67(working condition)

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure

Electrical Performance

1. Rated current and voltage：220V AC 32A

2. Insulation resistance：＞100MΩ（DC1000V）

3. Terminal temperature rise：＜50K

4. Withstand Voltage：2000VAC/1min

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Contact bush: Copper alloy, silver+thermoplastic on the top

Environmental performance

1. Operating temperature: -30°C~+50°C

Control Box Function

1. Leakage protection(restart recover）

2. Over voltage under-voltage protection(self-checking recover)

3. Overload protection(self-checking recover)

4. Lighting protection

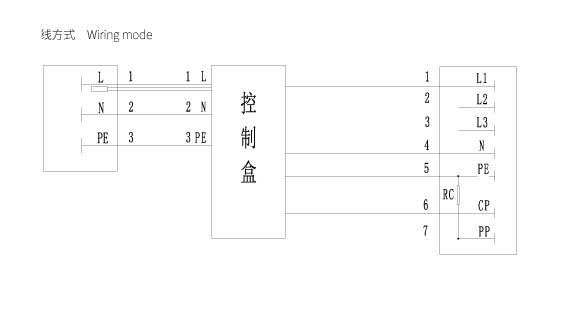

Model selection and the standard wiring

Model	Rated current	Cable specification
2080-PSE-32-XC-ES	32A	3 X 6mm²+2 X 0.5mm²
