High and low voltage charging connector of electric locomotive (ES)

Product Application：

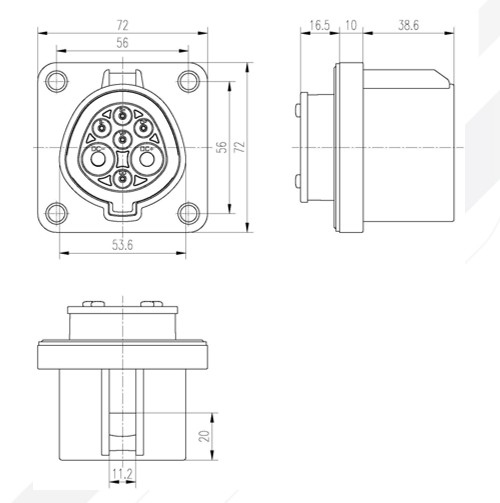

Detailed dimensions

Features

1.Comply with IEC 62196-6 ED1 standard

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

Electrical Performance

1. Rated current：60A

2. Operation voltage： 120V DC

3. Insulation resistance：＞100MΩ（DC1000V）

4. Terminal temperature rise：＜50K

5.Withstand Voltage：2000V AC/1min

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: thermoplastic,flame retardant grade UL94 V-0

2. Terminal：Copper alloy,silver plated surface

4.Excellent protection performance, protection grade IP54(working condition)

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model	Rated current	Cable specification
DSIEC-ES-60S	60A/120V DC	单导线 10mm²2、0.75mm²8
