APPLICATION
Mainly used in electric vehicle PDU, DC / DC, PTC, oil pump, air pump.
CHARACTERISTIC
Easy installation, reliable connection and convenient disassembly. Using plastic shells , low cost and high output.
Built-in high-voltage interlock function, with double level linkage interlock structure, limited protection of automobile high-voltage circuit. Various foolproof key positions can be selected.
|

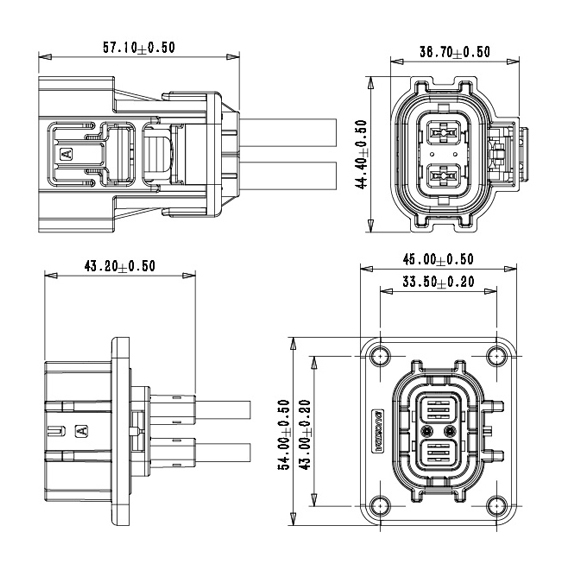

Mechanical characteristics |
|
||||||
|
Electrical characteristics |
|
||||||
|
Environmental performance |
|
|
Product selection table |
||||||
|
Wire diameter / key position |
A | B | C | D | E |
Remarks |
| 4mm2 | DH1-2P63-A04 | DH1-2P63-B04 | DH1-2P63-C04 |
DH1-2P63-D04 |
DH1-2P63-E04 |
Plug |
| DH1-2R63-A04 | DH1-2R63-B04 | DH1-2R63-C04 |
DH1-2R63-D04 |
DH1-2R63-E04 |
Socket |
|
| 6mm2 | DH1-2P63-A06 | DH1-2P63-B06 | DH1-2P63-C06 |
DH1-2P63-D06 |
DH1-2P63-E06 |
Plug |
| DH1-2R63-A06 | DH1-2R63-B06 | DH1-2R63-C06 | DH1-2R63-D06 | DH1-2R63-E06 |
Socket |
|
