TWO-CORE THROUGH HOLE CONNECTOR

25mm2-50mm2

Product Application：

APPLICATION

Mainly used in electric car battery box and motor driver.

CHARACTERISTIC

Easy installation, reliable connection and convenient disassembly. Using plastic shells , low cost and high output.

Mechanical characteristics

Wiring range：25mm²-50mm²

Crimping method： hexagonal cold crimping

Installation method：screw locking

Electrical characteristics

Rated voltage： 1000V DC

Rated current：200A(Max)

Insulation resistance：＞500MΩ

Withstand voltage：3000V AC

Temperature rise：≤50K

Shielding effectiveness：360° shielding

Environmental performance

Protection level：IP67

Working temperature：-40℃ to125℃

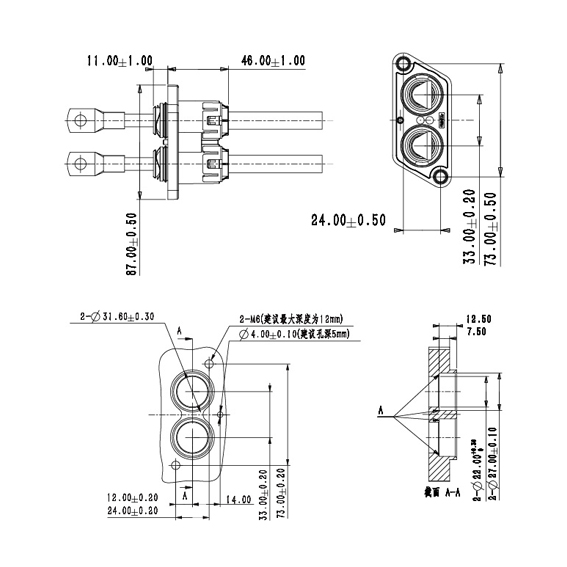

Detailed dimensions

Model selection and the standard wiring
