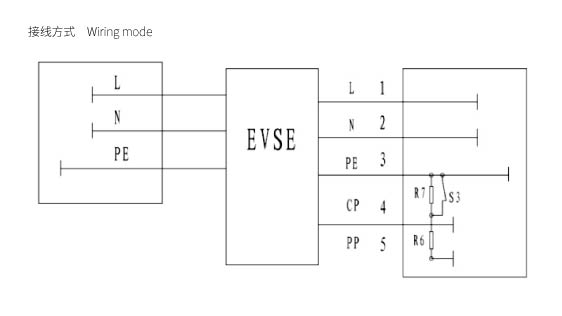

Charging mode 2

3030-PSE-16-XC-AS

Product Application：Electric vehicle connection

Detailed dimensions

Features

1. Charging plug SEA J1772 2010 standard

2. Power plug meet NEMA5-15 standard

3. Control box meet IEC 61851

4. Excellent protection performance,plug IP44(working condition),PSE IP55/67(working condition)

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure

Electrical Performance

1. Rated current and voltage：110V~240V AC 16A

2. Insulation resistance：＞100MΩ（DC1000V）

3. Terminal temperature rise：＜50K

4. Withstand Voltage：2000VAC/1min

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Contact bush: Copper alloy, silver+thermoplastic on the top

Environmental performance

1. Operating temperature: -30°C~+50°C

Control Box Function

1. Leakage protection(restart recover）

2. Over voltage under-voltage protection(self-checking recover)

3. Overload protection(self-checking recover)

4. Lighting protection

Model selection and the standard wiring

Model	Rated current	Cable specification
3030-PSE-16-XC-AS	16A	3 X14AWG+1 X 18AWG
