AC pile end charging socket

V3-DSS-G-EV16S/32S/40S/50S

Product Application：Electric vehicle connection

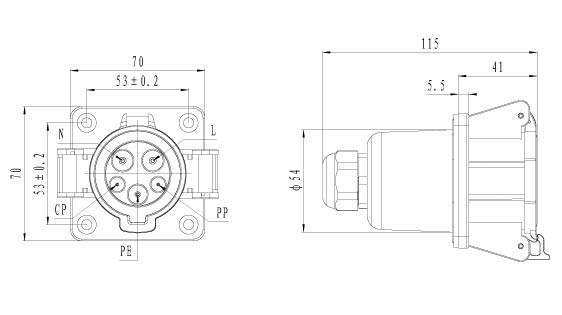

Detailed dimensions

Features

1. Meet SAE J1772-2010 standard

2. Nice appearance，left flip protection,support front installation

3. Reliability of materials, antiflaming,pressure -resistant,abrasion resistance,impact resistance and high oil

4. Excellent protection performance,protection grade IP44(working condition)

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

Electrical Performance

1. Rated current：16A/32A/40A/50A

2. Operation voltage： 240V

3. Insulation resistance：＞100MΩ（DC1000V）

4. Terminal temperature rise：＜50K

5. Withstand Voltage：2000VAC/1min

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Pin：Copper alloy,silver plating

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring
