High Voltage Connector

Vehicle Outlet socket

YGB-106

Check the size map

Product Application：

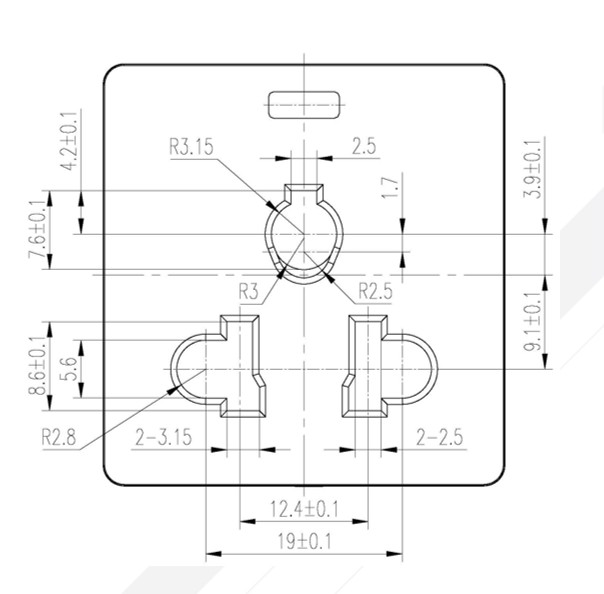

Detailed dimensions

Features

1.The socket structure size needs to be compatible with the following standard plugs:China: GB 1002-2008;USA: NEMA 5-15;Japan: JSA C 8303:2007;Australia;Brazil;Europe

2.Simple appearance, expandable for installation

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞20000 times

Electrical Performance

1. Rated current：10A

2. Operation voltage： 220V AC

3. Insulation resistance：＞100MΩ（DC 1000V）

4. Terminal temperature rise：＜45K

5.Withstand Voltage：2000V AC/1min

6. Contact Resistance： 5mΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Terminal：Copper alloy,surface pickling

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring
