SMALL DC CHARGING PLUG
V6-DSD-EV32P/80P/125P/500P
Product Application:

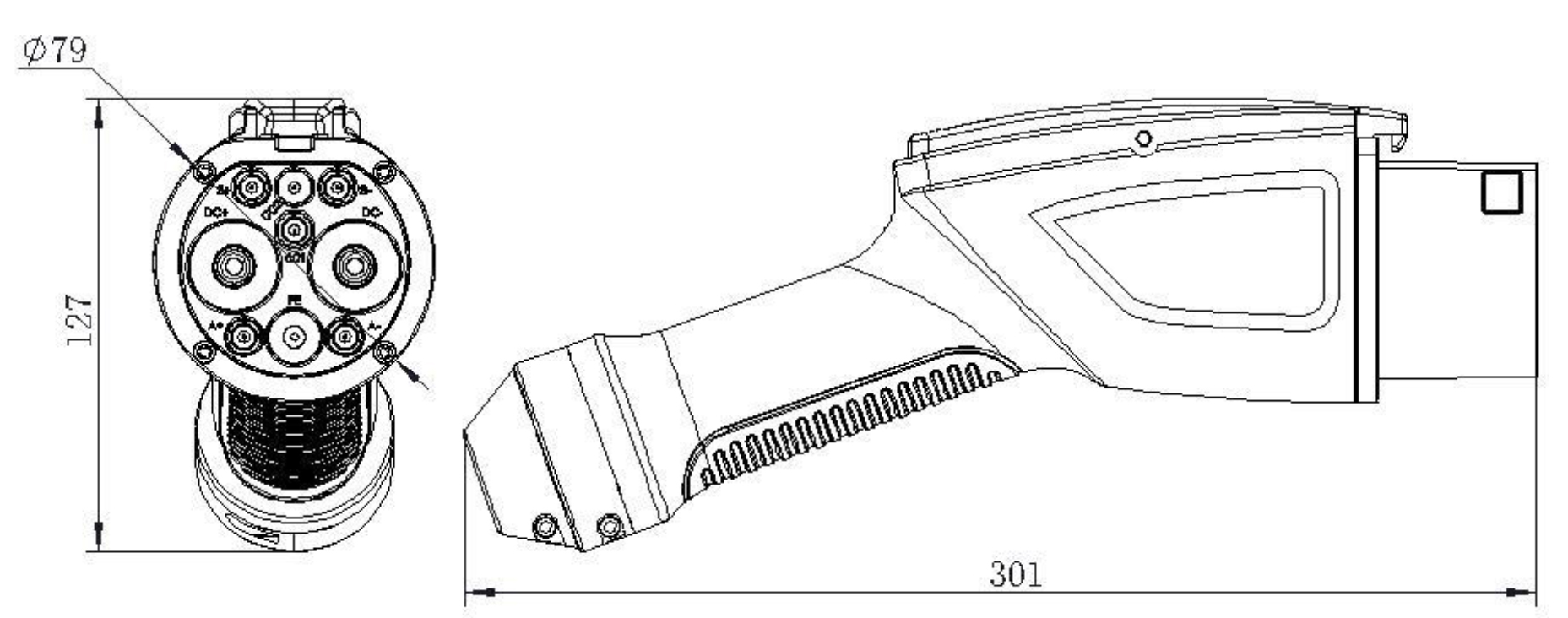

Detailed dimensions



Features
1. Meet GB/T 20234-2015 standard
2. Nice appearance,hand-held ergonomic design,easy plug
3. The pin head adopts a safe insulation design to prevent direct contact outside the hand
Mechanical properties
1.Mechanical life:no-load plug in/pull out>10000 times
2. Plugging force during coupling > 30N < 140N
Electrical Performance
1. Rated working current: 32~125A (non liquid cooling) &500A (liquid cooling)
2. Operation voltage:1000V
3. Insulation resistance:100MΩ(DC1000V)
4. Terminal temperature rise:<50K
5.Withstand Voltage:3000V AC/1min
6.Contact Resistance:0.5 mΩ Max
Applied Materials
1. Case Material:Thermoplastic,flame retardant grade UL94 V-0
2. Pin: copper alloy, silver plated surface + top thermoplastic
3.Excellent protection performance,protection grade IP55(working condition)
Environmental performance
1. Operating temperature:-30℃~+50℃

Model selection and the standard wiring



Model Rated current Cable specification
V6-DSD-EV32P 32A 2×6mm²+1×4mm²+2×1.5mm²+3×0.75mm² OD22.5±0.5mm
V6-DSD-EV80P 80A 3×16mm²+2×4mm²+2P(4×0.75mm²)+2P(2×0.75mm²)  OD30±0.5mm
V6-DSD-EV125P 125A 2×35mm²+1×16mm²+2×4mm²+2P(4×0.75mm²)+2P(2×0.75mm²)OD34±0.5mm
V6-DSD-EV500P 500A 2×35mm²+1×25mm²+2×(4X0.75mm²)+4×0.75mm²(液冷),OD34±0.5mm
