TWO-CORE STRAIGHT HEAD THROUGH HOLE METAL CONNECTOR

16mm2-50mm2

Product Application：

APPLICATION

Mainly used in electric vehicle high voltage distribution box, electric drive and other equipment.

CHARACTERISTIC

Metal shell design, with shockproof, pressure resistant, easy to install, reliable, beautiful and other characteristics, with 360 ° shielding.

Mechanical characteristics

Wiring range：16mm²-50mm²

Crimping method：hexagonal cold crimping

Installation method：screw locking

Electrical characteristics

Rated voltage： 1000V DC

Rated current：200A(Max)

Insulation resistance：＞200MΩ

Withstand voltage：3000V AC

Temperature rise：≤50K

Shielding effect: 60db

Environmental performance

Protection level：IP67

Working temperature：-40℃ to125℃

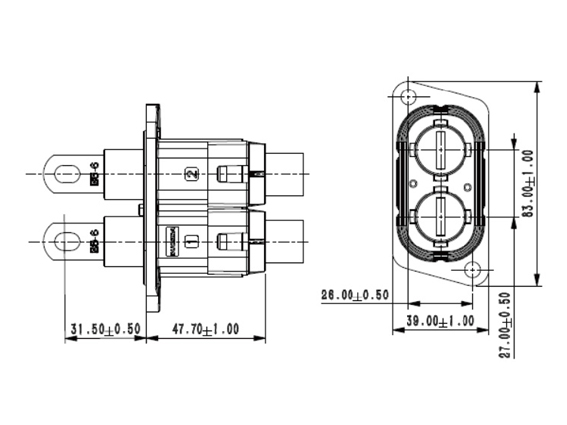

Detailed dimensions

Model selection and the standard wiring
