FOUR-CORE 2.4MM CLASP METAL CONNECTOR

2.5mm2-6mm2 shielded or unshielded

Check the size map

Product Application：

APPLICATION

Mainly used in high voltage control box, battery, DC / DC, etc.

CHARACTERISTIC

With fast rotating plug structure, easy to plug in narrow space; Sturdy structure, using aluminum alloy shell, with high impact and vibration resistance.

Various foolproof key positions can be selected.

Mechanical characteristics

Wiring range：2.5mm²-6mm²shielded or unshielded

Crimping method：four-point cold crimping

Installation method：screw locking

Electrical characteristics

Rated voltage： 400V DC

Rated current：40A(Max)

Insulation resistance：＞500MΩ

Withstand voltage：3000V AC

Temperature rise：≤50K

Shielding effect: 60db

Environmental performance

Protection level：IP67

Working temperature：-40℃ to125℃

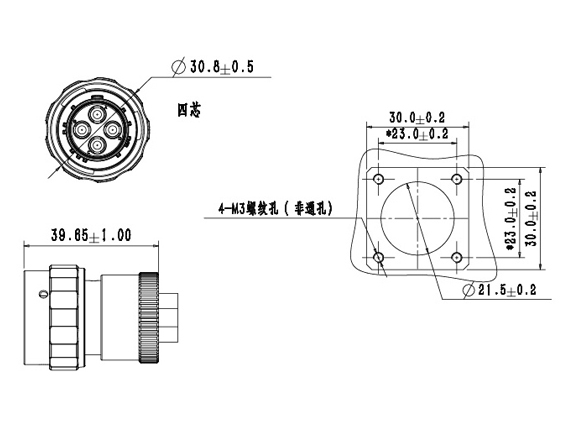

Detailed dimensions

Product selection table
Wire diameter / key position	A	B	C	Remarks
2.5mm² shielded	DH7-4P024-A025	DH7-4P024-B025	DH7-4P024-C025	Plug
2.5mm²unshielded	DH7-4P024-A025-01	DH7-4P024-B025-01	DH7-4P024-C025-01	Plug
2.5mm²shielded	DH7-4R024-A025	DH7-4R024-B025	DH7-4R024-C025	Socket
4.0mm²shielded	DH7-4P024-A04	DH7-4P024-B04	DH7-4P024-C04	Plug
4.0mm²unshielded	DH7-4P024-A04-01	DH7-4P024-B04-01	DH7-4P024-C04-01	Plug
4.0mm²shielded	DH7-4R024-A04	DH7-4R024-B04	DH7-4R024-C04	Socket
6.0mm²shielded	DH7-4P024-A06	DH7-4P024-B06	DH7-4P024-C06	Plug
6.0mm²unshielded	DH7-4P024-A06-01	DH7-4P024-B06-01	DH7-4P024-C06-01	Plug
6.0mm²shielded	DH7-4R024-A06	DH7-4R024-B06	DH7-4R024-C06	Socket

Model selection and the standard wiring
