TWELVE-CORE 1.5MM PLASTIC CONNECTOR

Wiring range: 0.75mm²

Product Application：

APPLICATION

Mainly used in electric vehicle PDU, battery pack.

CHARACTERISTIC

Small installation size, easy to dock in narrow space;

Sturdy structure: using two-way buckle, with high shock and vibration resistance.

Mechanical characteristics

Wiring range: 0.75mm²

Crimping method: cold crimping

Installation method：screw locking

pull in/pull out life:> 150 times

Electrical characteristics

Rated voltage： 250V DC

Rated current：8A(Max)

Insulation resistance：＞500MΩ

Withstand voltage：1500V AC

Temperature rise：≤50K

Environmental performance

Protection level：IP67

Working temperature：-40℃ to125℃

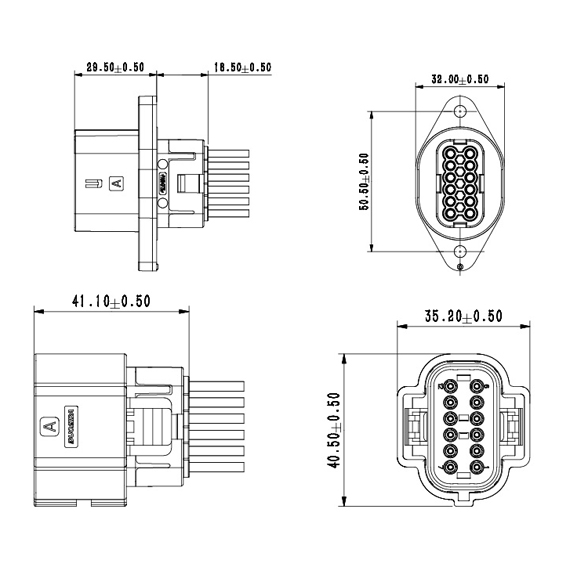

Detailed dimensions

Product selection table
Wire diameter / key position	A	B	C	D	Remarks
0.75mm²	DH2-12P15-A075	DH7-12P15-B075	DH7-12P15-C075	DH7-12P15-D075	Plug
0.75mm²	DH2-12R15-A075	DH7-12R15-B075	DH7-12R15-C075	DH7-12R15-D075	Socket

Model selection and the standard wiring
