TWO-CORE 6MM PLASTIC CONNECTOR

16mm2-35mm2

Product Application：

APPLICATION

Mainly used in electric vehicle PDU, battery pack.

CHARACTERISTIC

Easy installation, reliable connection and convenient disassembly. Using plastic shells , low cost and high output.

Built-in high-voltage interlock function, with double level linkage interlock structure, limited protection of automobile high-voltage circuit.

Various foolproof key positions can be selected.

Mechanical characteristics

Wiring range：16mm²-35mm²

Crimping method： hexagonal cold crimping

Installation method：screw locking

pull in/pull out life:> 150 times

Electrical characteristics

Rated voltage： 1000V DC

Rated current：135A(Max)

Insulation resistance：＞500MΩ

Withstand voltage：3000V AC

Temperature rise：≤50K

Shielding effectiveness： 360 ° shielding

Environmental performance

Protection level：IP67

Working temperature：-40℃ to125℃

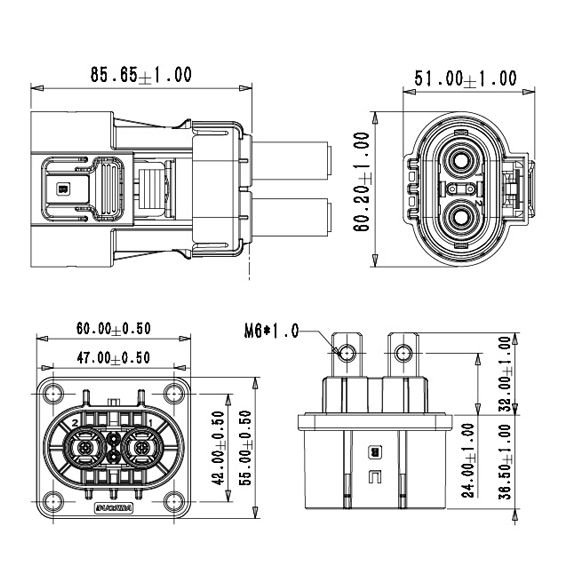

Detailed dimensions

Product selection table
Wire diameter / key position	A	B	C	D	E	Remarks
16mm²	DH1-2P6-A16	DH1-2P6-B16	DH1-2P6-C16	DH1-2P6-D16	DH1-2P6-E16	Plug
M6 screw	DH1-2R6-AM6	DH1-2R6-BM6	DH1-2R6-CM6	DH1-2R6-DM6	DH1-2R6-EM6	Socket
25mm²	DH1-2P6-A25	DH1-2P6-B25	DH1-2P6-C25	DH1-2P6-D25	DH1-2P6-E25	Plug
M6 screw	DH1-2R6-AM6	DH1-2R6-BM6	DH1-2R6-CM6	DH1-2R6-DM6	DH1-2R6-EM6	Socket
35mm²	DH1-2P6-A35	DH1-2P6-B35	DH1-2P6-C35	DH1-2P6-D35	DH1-2P6-D35	Plug
M6 screw	DH1-2R6-AM6	DH1-2R6-BM6	DH1-2R6-CM6	DH1-2R6-DM6	DH1-2R6-EM6	Socket

Model selection and the standard wiring
