Charging mode 3 connection method B2 type 2

2080-2090-16/32-XC/XC-3

Product Application：Charging pile to electric vehicle connection

Detailed dimensions

Features

1. Charging plug meet IEC 62196-2:2016 standard

2. Product assembly meet IEC 61851-1 2010 charging mode 3 connection method B2

3. Nice appearance,hand - held ergonomic design,easy plug

4. Reliability of materials, antiflaming,pressure -resistant,abrasion resistance,impact resistance and high oil

5. Excellent protection performance,protection grade IP54(working condition)

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure

Electrical Performance

1. Rated current ：16A/32A

2. Operation voltage: 250V/415V

3. Insulation resistance：＞100MΩ（DC 1000V）

4. Terminal temperature rise：＜50K

5. Withstand Voltage：2000VAC/1min

6. Contact resistance: 0.5mΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Conntact bush：Copper alloy,silver plating

Environmental performance

1. Operating temperature: -30°C~+50°C

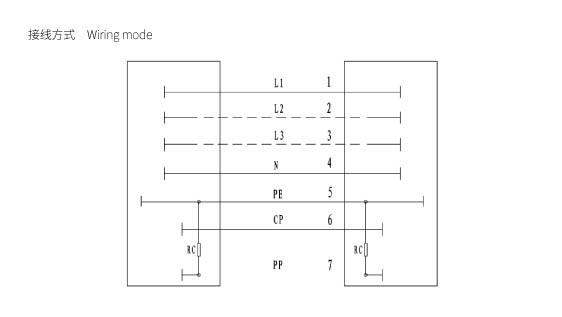

Model selection and the standard wiring
