Charging mode 2

1100-PSE-16-XC-NS

Product Application：Electric vehicle connection

Detailed dimensions

Features

1. Charging plug meet GB/T 20234.2-2015 regulations and requirements

2. Power plug meet 2099.1-2008 regulations and requirements,can choose with temperature protection device

3. Control box meet GB/T 20234.2-2011 control principle

4. Excellent protection performance,plug IP55(working condition),PSE IP55/67(working condition)

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure

Electrical Performance

1. Rated current and voltage：220V AC 16A

2. Operation voltage： 250V

3. Insulation resistance：＞100MΩ（DC1000V）

4. Terminal temperature rise：＜50K

5. Withstand Voltage：2000VAC/1min

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Pin: Copper alloy, silver+thermoplastic on the top

Environmental performance

1. Operating temperature: -30°C~+50°C

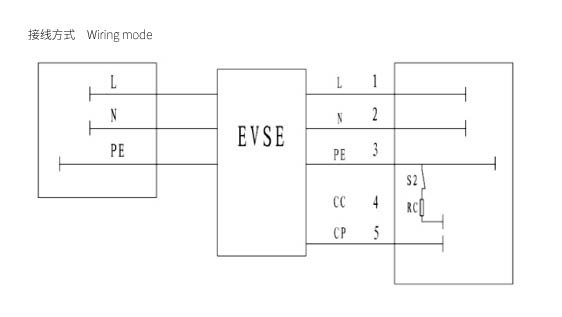

Model selection and the standard wiring

Model	Rated current	Cable specification
1100-PSE-16-XC-NS	16A	3 X 2.5mm²+2 X 0.75mm²
