AC pile end charging socket

NV3-DSD-G-EV80S/125S/200S/250S

Product Application：Electric vehicle connection

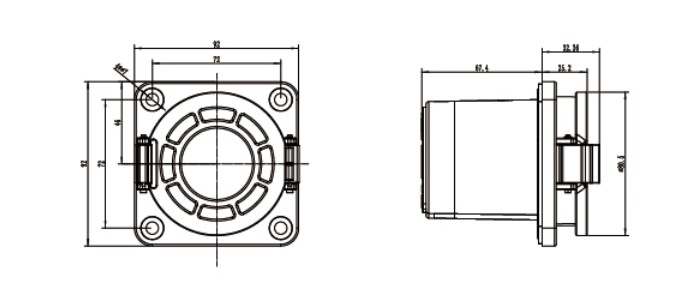

Detailed dimensions

Features

1. Meet GB/T 20234.3-2015 regulations and requirements

2. Nice appearance，left flip protection,support front installation

3. Reliability of materials, antiflaming, pressure-resistant, abrasion resistance, impact resistance and high oil

4. Excellent protection performance,protection grade IP55(working condition)

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

2. Coupled insertion force: >70N<140N

Electrical Performance

1. Rated current：80A/125A/200A/250A

2. Operation voltage： 750V

3. Insulation resistance：＞100MΩ（DC1000V）

4. Terminal temperature rise：＜50K

5. Withstand Voltage ：3000VAC/1min

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Contact bush：Copper alloy,silver plating

Environmental performance

1. Operating temperature：-30℃～+50℃

Model selection and the standard wiring
